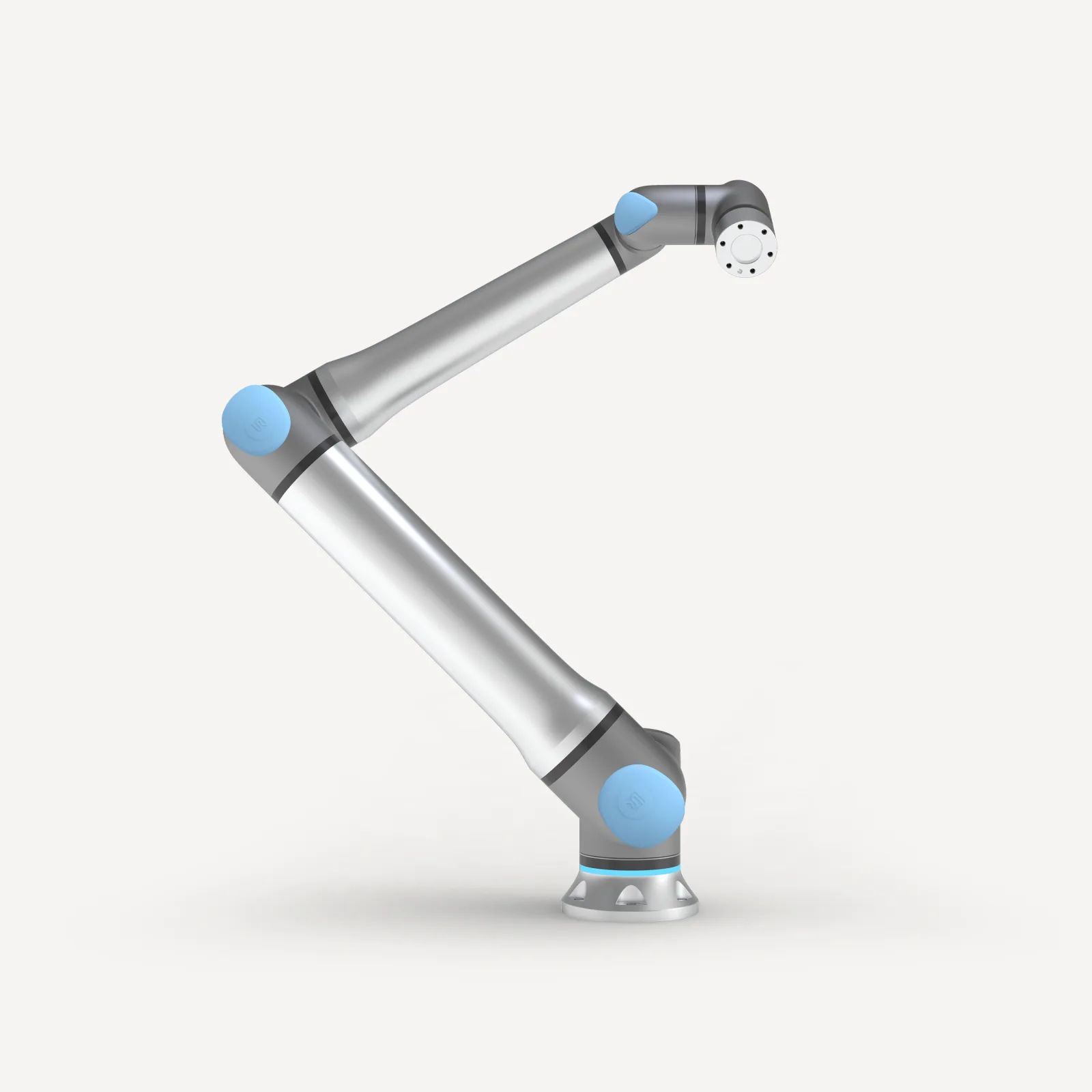

UR20
High-payload industrial cobot for diverse production tasks in compact spaces
Overview
This collaborative robot represents Universal Robots' next-generation high-capacity offering. Featuring a redesigned joint architecture, it is engineered for operations like pallet loading and material handling, while maintaining a reduced physical footprint for integration into existing factory layouts.
Specifications
- Deployment Stage
- Paid Deployment
- Degrees of Freedom
- 6
- IP Rating
- IP65
- Locomotion
- Stationary
- Max Speed
- 5 m/s
- Operating Temperature
- 0–50 °C (reduced above 35 °C)
- Payload Capacity
- 20 kg (25 kg with boundary conditions per manual)
- Reach
- 1750 mm
- Repeatability
- ±0.1 mm
- Weight
- 64 kg
- Footprint
- Ø245 mm
- Power consumption
- 750 W max (≈300–500 W typical)
- Power supply
- 100–240 VAC, 47–440 Hz
- Controller
- PolyScope on 12-inch touchscreen (CB5 control box)
- Noise level
- ≤65 dB(A) arm
- Tool I/O
- 2 digital in, 2 digital out, 2 analog in; 12/24 V (2 A dual-pin / 1 A single-pin)
- Safety functions
- 21 configurable safety functions (EN ISO 13849-1 PLd Cat 3; EN ISO 10218-1; UL 1740)
- Width
- 245 mm
Where it performs
- Handles substantial payloads of up to 20 kg (25 kg under specific conditions)
- Optimised for placement into constrained production environments
- Compatible with an extensive ecosystem of partner-developed tools
What to check before buying
- Performance may degrade when operating at temperatures exceeding 35 °C
- Deployment requires careful planning for its 64 kg base weight
- Ensure environmental conditions meet the IP65 rating requirements
