ABB · Industrial cobots

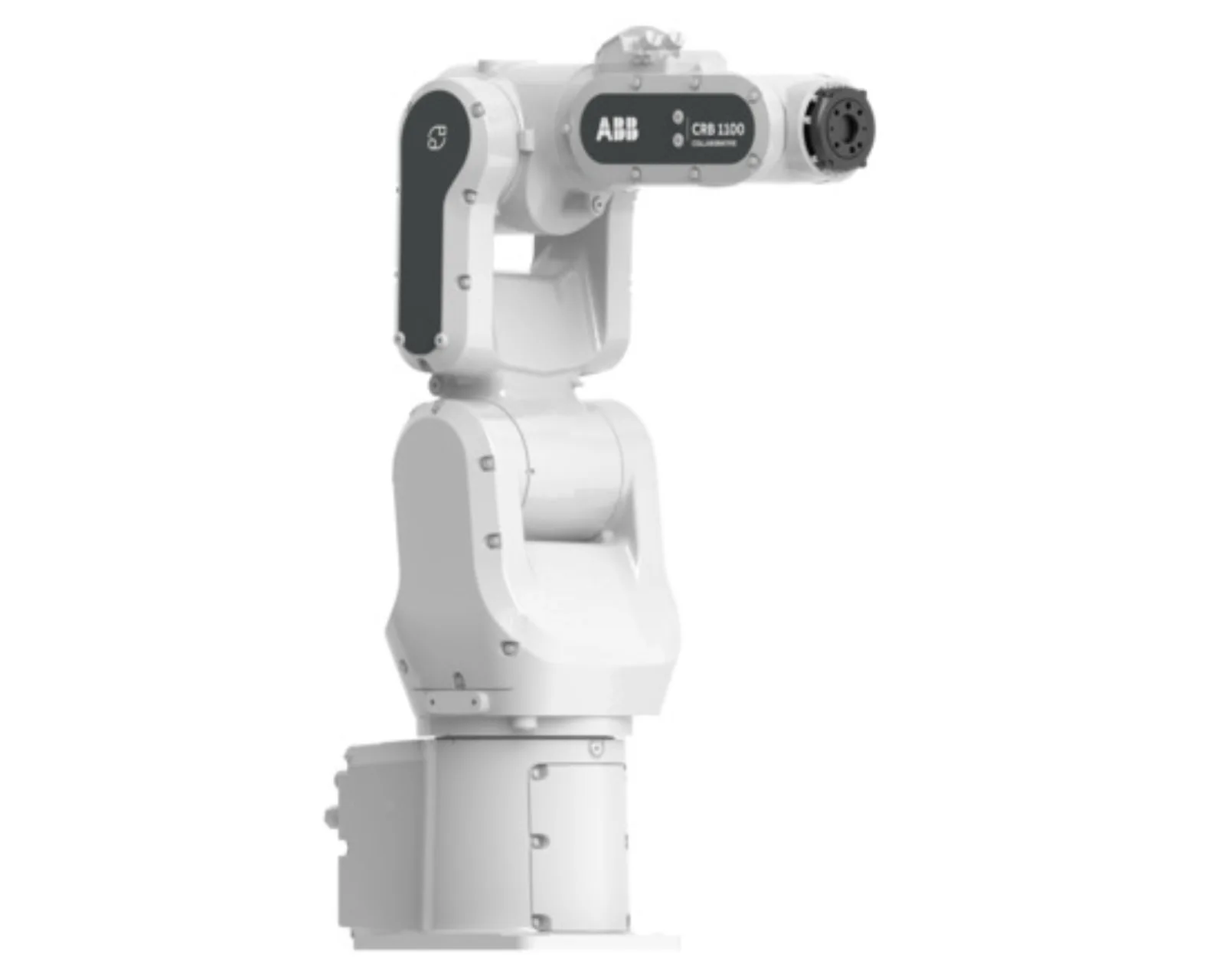

ABB SWIFTI
A high-speed industrial cobot bridging the gap between collaborative and conventional robots.
Overview
This collaborative robot is designed for industrial environments, balancing safe human interaction with high-speed performance. It achieves this through a combination of ABB's SafeMove system and an external laser scanner, enabling operation without safety fences. The system dynamically adjusts speed when personnel are present.
Specifications
- Deployment Stage
- Scaled Deployment
- Locomotion
- Stationary (fixed-mount arm; any-angle mounting)
- Max Speed
- 5.05 m/s max TCP velocity (CRB 1100-4/0.58, ISO 9283; 4.32 m/s for the 0.475 variant; safe collaborative speed dynamically limited by the laser-scanner/SafeMove setup)
- Payload Capacity
- 4 kg (all CRB 1100 variants; armload 0.5 kg)
- Reach
- 580 mm
- Repeatability
- 0.01 mm
- Runtime
- Not applicable — mains-powered fixed arm via OmniCore C30 controller, no battery
- Sensors
- SafeMove safety controller + external safety laser scanner (safety PLC required) + interaction status light; no LiDAR or 3D cameras onboard
- Weight
- 21 kg
Where it performs
- Operates safely alongside human personnel without physical barriers.
- Maintains industrial-level speed and precision when operating alone.
- Flexible mounting options support diverse workstation layouts.
What to check before buying
- Requires an external safety laser scanner and safety PLC for collaborative functions.
- Payload capacity of 4 kg is suitable for lighter material handling tasks.
- No integrated 3D cameras or LiDAR for environmental awareness.
