KUKA LBR Med
Medical-grade collaborative robot component for integration into medical devices.
Overview

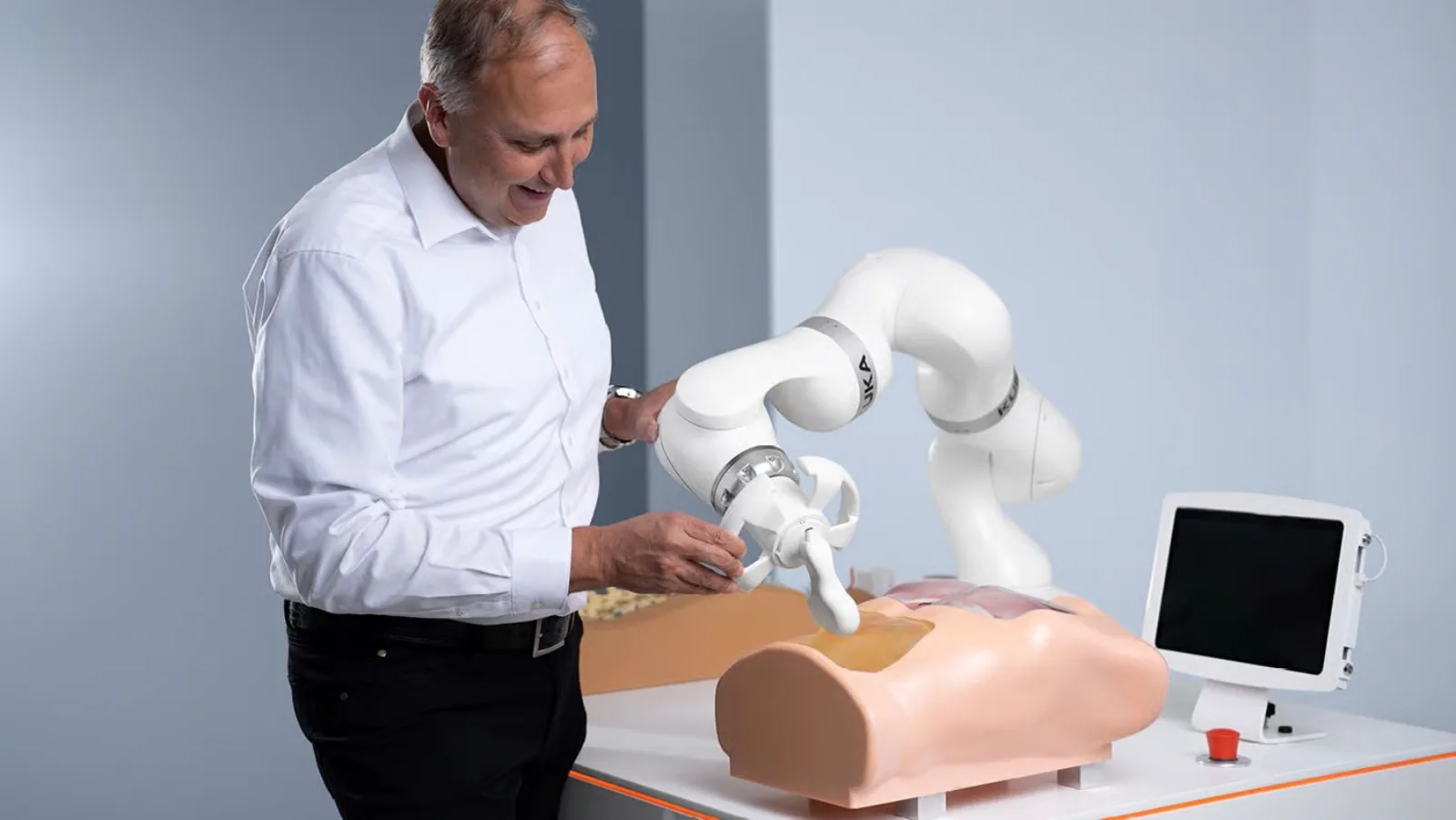

The KUKA LBR Med is a seven-axis lightweight robot certified for integration into medical systems. Based on the established iiwa platform, it features integrated torque sensors, comprehensive safety, and a hygienic surface suitable for clinical environments.
Specifications
- Deployment Stage
- Paid Deployment
- Degrees of Freedom
- 7
- Height
- 1266 mm (LBR Med 7 R800)
- IP Rating
- IP54
- Locomotion
- Stationary
- Payload Capacity
- 7 kg
- Reach
- 800 mm
- Repeatability
- ±0.1 mm
- Weight
- approx. 25.5 kg (LBR Med 7 R800)
Where it performs
- Facilitates faster regulatory approval for integrated medical devices.
- Hygienic design and integrated safety features suit clinical environments.
- Offers precise manipulation for sensitive medical procedures or handling.
What to check before buying
- Designed as a component, not a standalone medical device solution.
- Requires further development and certification by the medical device manufacturer.
- Pricing information is not publicly available, indicating bespoke quotation.
