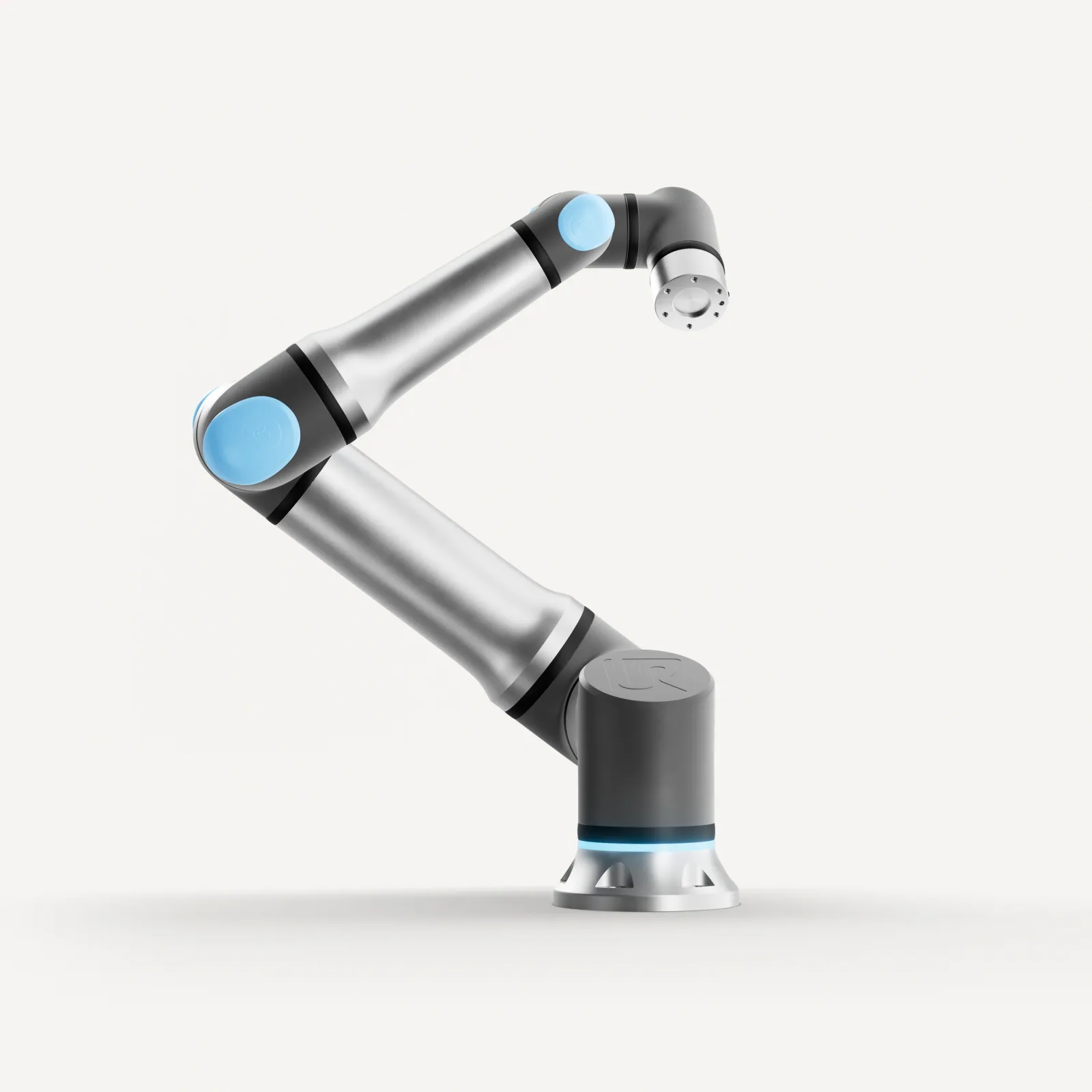

UR30
Compact, heavy-duty cobot for precise manipulation of significant weights
Overview
The UR30 is a robust six-axis collaborative robot arm designed for demanding industrial applications. It combines considerable lifting capability with a compact frame, enabling precise control over large loads for tasks such as palletising or high-torque fastening.
Specifications
- Deployment Stage
- Paid Deployment
- Communication
- Ethernet, Modbus TCP, EtherNet/IP, PROFINET/PROFIsafe, ROS/ROS2
- Degrees of Freedom
- 6
- IP Rating
- IP65
- Locomotion
- Stationary
- Max Speed
- 4 m/s
- Payload Capacity
- 30 kg (35 kg with boundary conditions per manual)
- Reach
- 1300 mm
- Repeatability
- ±0.1 mm
- ROS Compatible
- Yes
- Weight
- 63.5 kg
- Power consumption
- 750 W
- Width
- 245 mm
- Depth
- 245 mm
Where it performs
- Manages heavy items with a 30 kg payload capacity (35 kg under specific conditions)
- Provides excellent control for accurate placement of substantial loads
- Offers broad compatibility with standard industrial communication protocols
What to check before buying
- Confirm reach of 1300 mm is sufficient for intended task envelope
- Requires stationary installation, typical for industrial robotic arms
- Evaluate integration with existing systems using specified communication standards
