Elephant Robotics · Autonomous mobile robots
myAGV
A compact omnidirectional mobile platform for research and mobile manipulation.
Overview

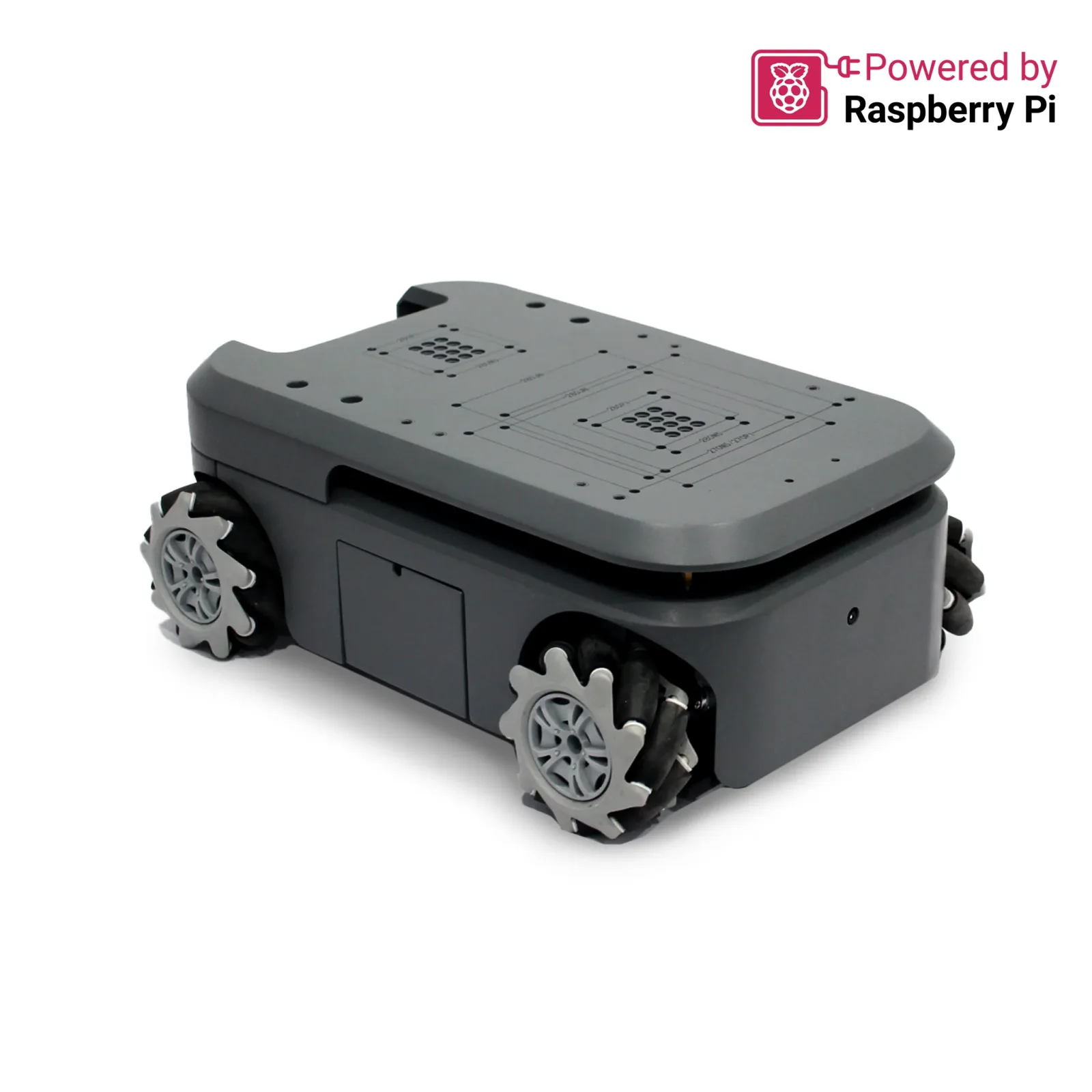

The myAGV is a compact mobile robot platform featuring Mecanum wheels for omnidirectional movement. It integrates a Raspberry Pi controller, lidar, and camera for autonomous navigation and SLAM. The chassis is designed for mounting robotic arms, forming a compound mobile-manipulator system.
Specifications
- Deployment Stage
- Paid Deployment
- Communication
- WiFi + Bluetooth (main-control core), Ethernet RJ45, USB (2.0 on Pi / 3.0 on JN), HDMI
- Height
- 110 mm (chassis height, myAGV 2023)
- Locomotion
- Wheeled
- Max Speed
- 0.9 m/s maximum movement speed
- Payload Capacity
- 5 kg maximum load (myAGV 2023; original 2022 model was 2 kg)
- ROS Compatible
- Yes
- Runtime
- 181 min navigation endurance (~3 h; standby 328 min; doubling possible with hot-swap spare battery)
- SDK Support
- Yes
- Sensors
- 360° LiDAR (0.12-8 m range) + built-in camera (5 MP on Pi / 8 MP on Jetson Nano); no ultrasonic sensors or gyroscope documented
- Weight
- 4.16 kg net weight
- Width
- 236 mm
- Depth
- 311 mm
Where it performs
- Omnidirectional movement capability using Mecanum wheels enhances agility.
- Integrated SLAM and navigation features support autonomous operation.
- Designed for modular integration with robotic arms, extending functionality.
What to check before buying
- Limited runtime of approximately three hours may necessitate battery swaps.
- Payload capacity of 5 kg restricts heavier attachment or cargo options.
- Specific controller choices (Raspberry Pi/Jetson Nano) dictate processing power.
