AgileX Robotics · Autonomous mobile robots

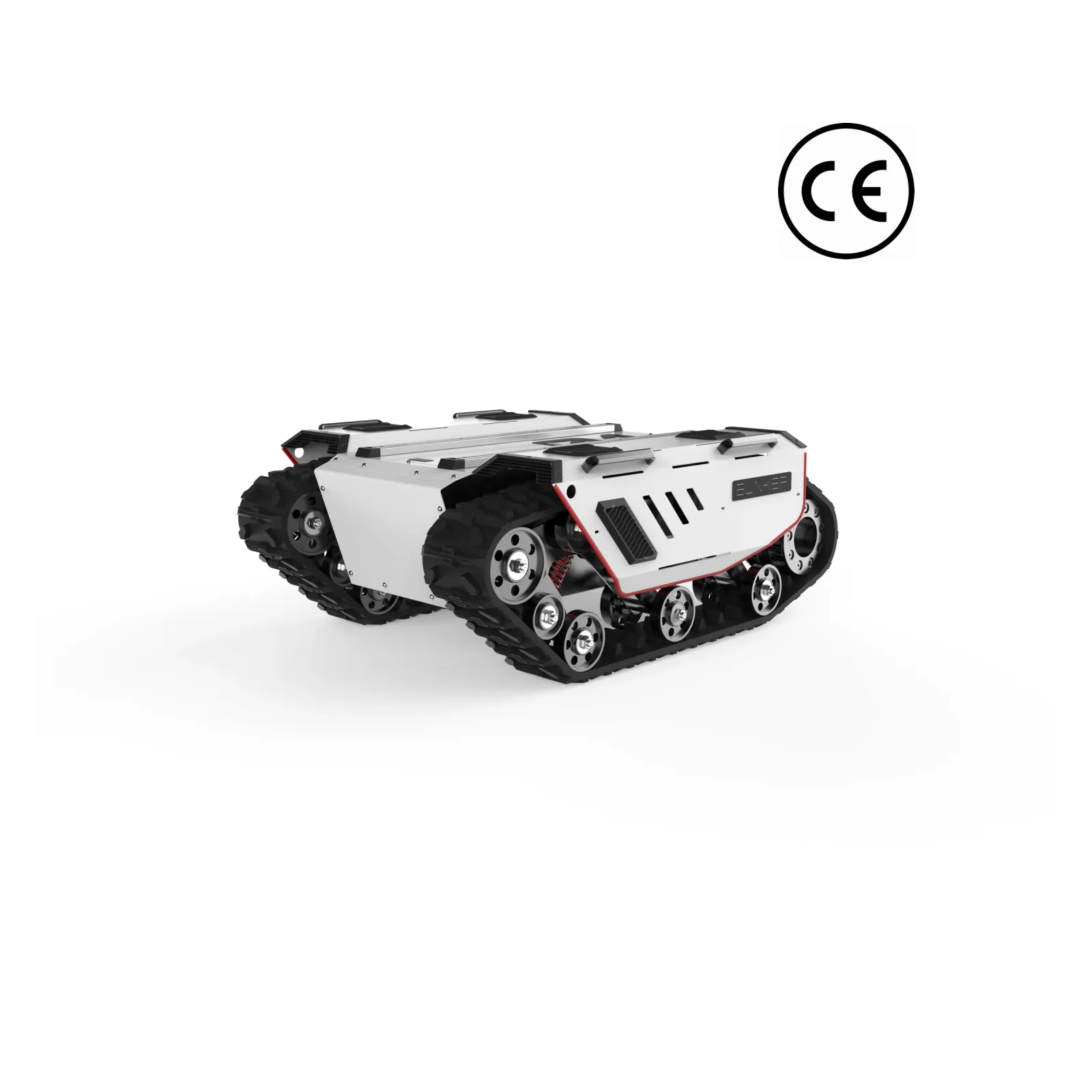

AgileX BUNKER
Robust tracked chassis for demanding off-road and challenging terrain applications.
Overview
The Bunker provides a durable tracked chassis designed for navigating difficult outdoor environments. Its independent suspension system facilitates traversal over obstacles and varied ground. The platform offers open interfaces for custom sensor integration and application development.
Specifications
- Deployment Stage
- Paid Deployment
- Communication
- CAN bus
- Height
- 400 mm
- IP Rating
- IP54
- Locomotion
- Tracked
- Max Speed
- 1.5 m/s
- Operating Temperature
- -10°C to 45°C
- Payload Capacity
- 70 kg
- ROS Compatible
- Yes
- SDK Support
- Yes
- Weight
- About 130 kg
Where it performs
- Tracked locomotion ensures superior traction on uneven surfaces.
- High payload capacity supports diverse sensor and equipment integration.
- Open SDK and CAN bus simplify custom application development.
What to check before buying
- Operating temperature range is limited at the lower end.
- IP54 rating indicates protection against splashes, not full immersion.
- Payload capacity should account for attached accessories and sensors.
