Clearpath Dingo
Compact, lightweight mobile robot for research and educational applications.
Overview

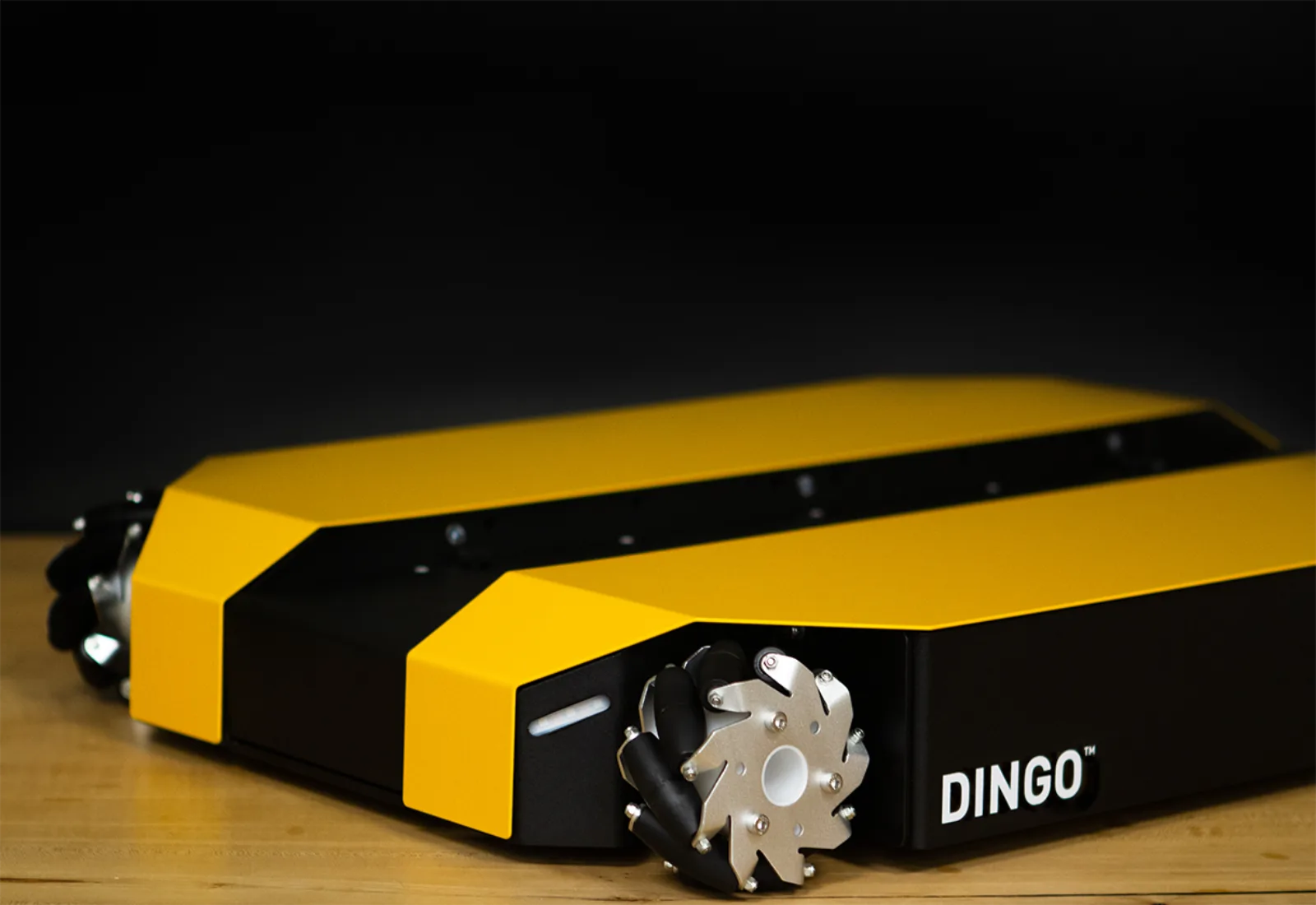

Dingo is a small, versatile indoor mobile robot offered in two drive configurations. It arrives pre-configured with ROS, simplifying development for researchers and educators. The design supports easy integration of various third-party components for advanced robotics projects.
Specifications
- Deployment Stage
- Paid Deployment
- Communication
- Ethernet, USB 3.0, RS 232
- Height
- 110 mm (Dingo-D chassis; Dingo-O is 114 mm)
- IP Rating
- IP40
- Locomotion
- Wheeled
- Max Speed
- 1.3 m/s
- Payload Capacity
- 20 kg
- ROS Compatible
- Yes
- Runtime
- 4 hours
- SDK Support
- Yes
- Sensors
- IMU
- Weight
- 9.1 kg (Dingo-D 1.0; Dingo-O 1.0 is 13 kg)
- Width
- 517 mm
- Depth
- 551 mm
Where it performs
- Compact size allows navigation in confined indoor spaces.
- Multiple drive configurations cater to diverse research requirements.
- Pre-configured ROS support accelerates development and deployment.
What to check before buying
- IP40 rating limits use to dry, dust-free indoor environments.
- Payload capacity is suitable for lightweight research equipment only.
- Limited runtime necessitates frequent battery recharges for extended use.
