Clearpath Robotics · Autonomous mobile robots

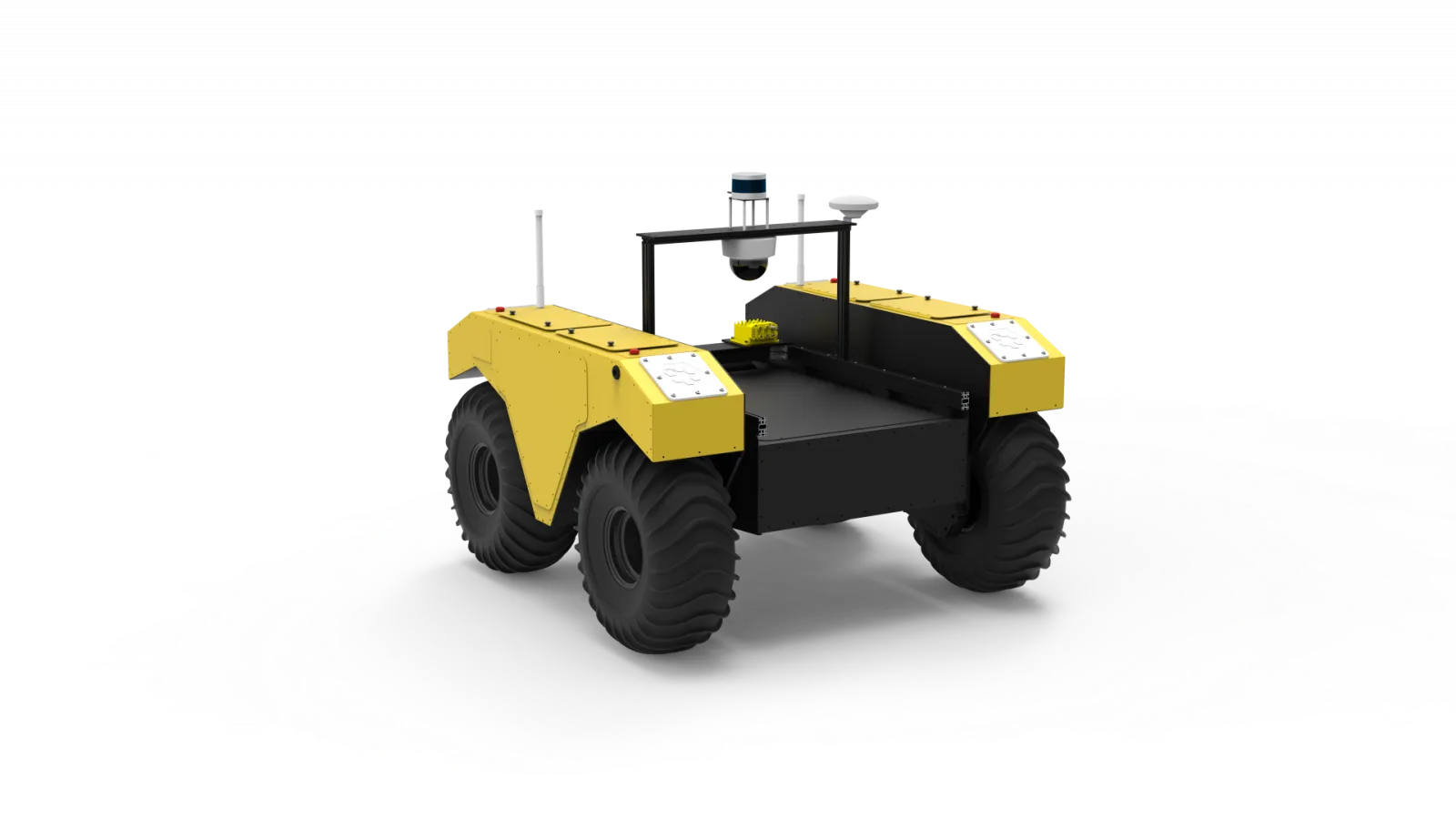

Clearpath Warthog
Amphibious off-road platform for demanding outdoor applications
Overview
A large-scale amphibious unmanned ground vehicle engineered for extreme outdoor conditions. Its durable construction and low ground pressure allow it to navigate difficult terrain, including steep inclines, soft ground, and shallow water bodies.
Specifications
- Deployment Stage
- Paid Deployment
- Communication
- WiFi, Ethernet
- Height
- 830 mm (external dimensions 1.52 × 1.38 × 0.83 m)
- IP Rating
- IP65 (current Clearpath datasheet; the original 2016 datasheet said IP67 — vehicle floats and must not be fully submerged)
- Locomotion
- Wheeled
- Max Speed
- 18 km/h
- Operating Temperature
- -20 to 40 °C operating ambient (storage: -40 to 50 °C)
- Payload Capacity
- 272 kg
- ROS Compatible
- Yes
- SDK Support
- Yes
- Sensors
- IMU and wheel encoders included; GPS optional (part of add-on sensing packages)
- Weight
- 280 kg
- Width
- 1.38 m
- Depth
- 1.52 m
Where it performs
- Built with a rugged steel and aluminum frame for harsh environments.
- Exceptional terrain traversal capabilities, including shallow water.
- High payload capacity supports substantial sensor and manipulator integration.
What to check before buying
- Operating temperature range is limited at the higher end (40 °C).
- Large physical dimensions require significant deployment space.
- Payload capacity of 272 kg demands careful consideration for stability.
